Коммутатор Juniper EX8216-BASE-AC

General Information

Manufacturer:

Juniper

Product ID:

EX8216-BASE-AC

Product Description:

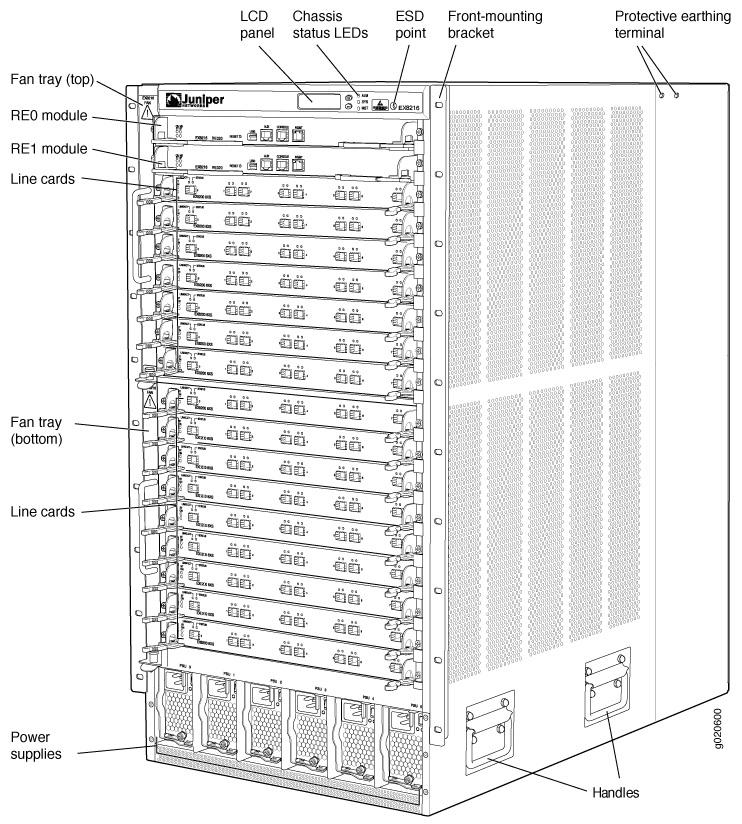

Base EX8216 system configuration: 16-slot chassis with passive midplane and 2x fan tray, 1x routing engine, 8x switch fabric modules, 2x 3000 W AC PSUs with power cords, and all necessary blank panels

Product Type:

Switch Chassis

Marketing Information

The 16-slot Juniper Networks EX8216 Ethernet Switch, part of the Juniper Networks EX8200 line of Ethernet Switches, offers a high-density, high-performance platform for aggregating access switches deployed in data center top-of-rack or end-of-row applications, as well as for supporting Gigabit Ethernet server access in data center end-of-row deployments. The EX8216 delivers approximately 1.9 billion packets per second (Bpps) of high-density, wire-speed 10-Gigabit Ethernet performance for the largest data center networks.

To maximize network investments, the EX8216 leverages the same EX8200 wire-speed line cards and power supplies used by the eight-slot Juniper Networks EX8208 Ethernet Switch, ensuring consistent performance across the entire product family. Working with the EX8208, as well as Juniper Networks EX4200 and EX3200 lines of Ethernet switches which all run the same Juniper Networks JUNOS Software operating system, the EX8216 helps reduce capital and operational expenses across the data center infrastructure.

Interfaces/Ports

Management Port:

Yes

Media & Performance

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

16

Network & Communication

Layer Supported:

3

Management & Protocols

Manageable:

Yes

Management:

· IEEE 802.1p Quality of Service

· IEEE 802.1Q VLAN

· Command-line interface

· Embedded Web-based management (Juniper Networks J-Web Software)

· SNMP v1, v2c, v3

· Network and Security Manager

· DHCP

· Syslog

· RMON

· Telnet

Memory

Standard Memory:

2 GB

Memory Technology:

DRAM

Flash Memory:

2 GB

Physical Characteristics

Compatible Rack Unit:

21U

Form Factor:

Rack-mountable

Height:

36.5"

Width:

17.3"

Depth:

26.5"

Weight (Approximate):

270 lb

Miscellaneous

Package Contents:

· EX8216 Ethernet Switch

· 2 x Fan Tray

· 1 x Routing Engine

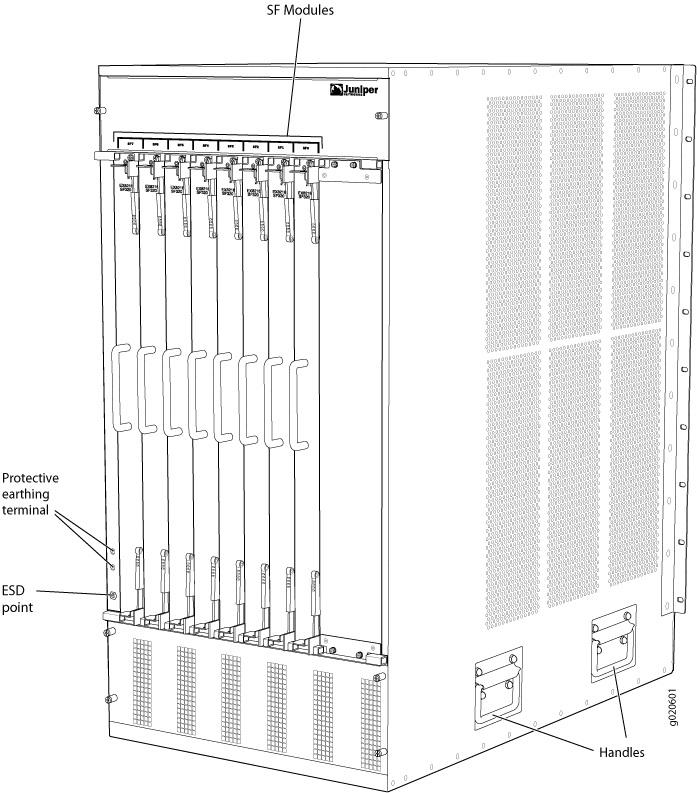

· 8 x Switch Fabric Modules

· 2 x 3,000 W AC PSUs with power cords

· All necessary blank panels

Additional Information:

VLANs supported: 4,096 VLANs
