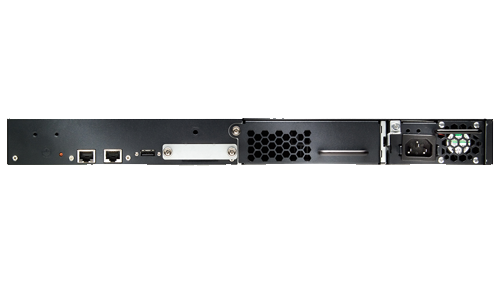

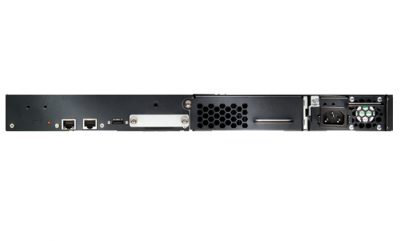

Коммутатор Juniper EX3200-24T-DC

General Information

Manufacturer:

Juniper

Product ID:

EX3200-24T-DC

Product Description:

24-port 10/100/1000BASE-T + 190 W DC PSU

Product Type:

Ethernet Switch

Marketing Information

The EX 3200-24T-DC Ethernet Switch is fixed-configuration switch from Juniper Networks offer a high-performance standalone solution for access-layer deployments in branch and remote offices as well as campus networks. Featuring complete Layer 2 and Layer 3 switching capabilities, the EX 3200-24T-DC switch satisfy the wiring closet connectivity requirements of today's high-performance businesses. The EX 3200-24T-DC Ethernet switch also support optional four-port Gigabit Ethernet (GbE) and two-port 10 GbE uplink modules with pluggable optics to provide high-speed connectivity to aggregation-layer switches or other upstream devices. A field-replaceable power supply and fan tray minimize mean time to repair (MTTR) for the EX 3200-24T-DC switch, ensuring maximum availability. When deployed with an optional external redundant power supply unit, the EX 3200-24T-DC switch power supply becomes hot-swappable.

Interfaces/Ports

Total Number of Network Ports:

24

Number of Network (RJ-45) Ports:

24

Port/Expansion Slot Details:

24 x Gigabit Ethernet Network

4 x Gigabit Ethernet Expansion Slot

Media & Performance

Ethernet Technology:

Gigabit Ethernet

Network Technology:

10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:

4

Expansion Slot Type:

SFP

Number of SFP Slots:

4

Network & Communication

Layer Supported:

3

Management & Protocols

Manageable:

Yes

Management:

· JUNOS CLI

· SNMP: v1, v2c, v3

· RMON 1, 2, 3, 9

· DHCP server

· HTTP/HTTPs

· DNS resolver

· IEEE 802.1p Quality of Service (QoS)

· Telnet

· IEEE 802.1Q VLAN

Memory

Standard Memory:

512 MB

Memory Technology:

DRAM

Flash Memory:

1 GB

Power Description

Power Source:

Power Supply

Redundant Power Supply:

Yes

Physical Characteristics

Compatible Rack Unit:

1U

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.4"

Depth:

16.4"

Weight (Approximate):

14.90 lb

Miscellaneous

Package Contents:

· EX 3200-24T-DC Ethernet Switch

· 190 W DC Power Supply Unit

Additional Information:

· Uplink module options

· 4xport 1 GbE module with pluggable SFP optics

· 2xport 10 GbE module with pluggable XFP optics

· Juniper Networks Unified Access Control (UAC)

· IPv4

· Redundant external power supply option

· Field-replaceable fan

· Graceful protocol restart OSPF, BGP

· Online insertion and removal (OIR) uplink module

· Network and Security Manager (NSM)

· IEEE 802.1X

· Processor:

· 600 MHz PowerPC

Green Compliant:

Yes

Green Compliance Certificate/Authority:

RoHS-5
