Коммутатор Juniper EX3300-48T

General Information

Manufacturer:

Juniper

Product ID:

EX3300-48T

Product Description:

EX3300, 48-port 10/100/1000BaseT with 4 SFP+ 1/10G uplink ports (optics not included)

Product Type:

Layer 3 Switch

Marketing Information

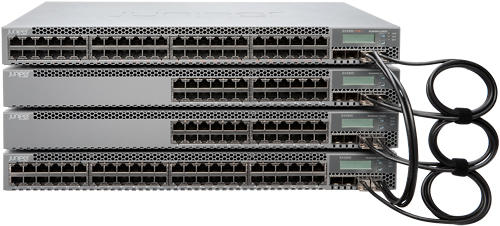

The EX3300 line of Ethernet Switches features Virtual Chassis technology to deliver a flexible, cost-effective enterprise access solution for demanding environments that support converged data, voice, and video. Virtual Chassis technology enables up to six interconnected EX3300 switches to operate as a single, logical device, providing enterprises with a level of flexibility and management simplicity normally associated with higher-end access switches.

Interfaces/Ports

Total Number of Network Ports:

48

Token Ring Port:

No

LRE Port:

No

Number of Network (RJ-45) Ports:

48

Port/Expansion Slot Details:

48 x Gigabit Ethernet Network

4 x 10 Gigabit Ethernet Expansion Slot

Media & Performance

Ethernet Technology:

Gigabit Ethernet

Fast Ethernet

Network Technology:

10/100/1000Base-T

10/100Base-TX

I/O Expansions

Number of Total Expansion Slots:

4

Expansion Slot Type:

SFP+

Number of SFP+ Slots:

4

Network & Communication

Layer Supported:

3

Management & Protocols

Manageable:

Yes

Management:

· QoS

· CLI

· DHCP

· Telnet

· SNMP v1,v2c,v3

· Syslog

· MIB

· RMON 1,2,3,9

· VLAN

· Web-based Management

· Junos Web

Memory

Standard Memory:

1 GB

Memory Technology:

DRAM

Flash Memory:

1 GB

Power Description

PoE (RJ-45) Port:

No

Input Voltage:

110 V AC

220 V AC

Power Source:

Power Supply

Redundant Power Supply:

Yes

Physical Characteristics

Compatible Rack Unit:

1U

Form Factor:

Rack-mountable

Height:

1.7"

Width:

17.4"

Depth:

12"

Weight (Approximate):

10.80 lb

Miscellaneous

Green Compliant:

Yes

Green Compliance Certificate/Authority:

RoHS-6
