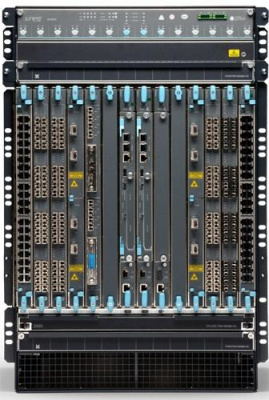

Коммутатор Juniper EX9214-RED3B-DC

Form factor

EX9204: 4-slot modular chassis
EX9208: 8-slot modular chassis
EX9214: 14-slot modular chassis

Dimensions (W x H x D)

EX9204:
17.5 x 8.7 x 27.8 in (44.5 x 22.1 x 70.5 cm)
5 rack units
EX9208:
17.5 x 14 x 27.8 in (44.5 x 35.6 x 70.5 cm)
8 rack units
EX9214:
17.5 x 27.8 x 27.8 in (44.5 x 70.5 x 70.5 cm)
16 rack units

Backplane speed

EX9204: Up to 1.6 Tbps per chassis
EX9208: Up to 4.8 Tbps per chassis
EX9214: Up to 13.2 Tbps per chassis

Data rate

EX9200-40T: Up to 40 Gbps
EX9200-40F: Up to 40 Gbps
EX9200-32XS: Up to 240 Gbps
EX9200-4QS: Up to 120 Gbps

Throughput

Up to 240 Gbps per slot (full duplex) on all chassis

40GBASE QSFP + port densities

EX9204: 12 (EX9200-4QS line card)
EX9208: 28 (EX9200-4QS line card)
EX9214: 48 (EX9200-4QS line card)

100GBASE CFP port densities

EX9204: 6 using EX9200-2C-8XS line card
EX9208: 10 using EX9200-2C-8XS line card
EX9214: 20 using EX9200-2C-8XS line card

Resiliency

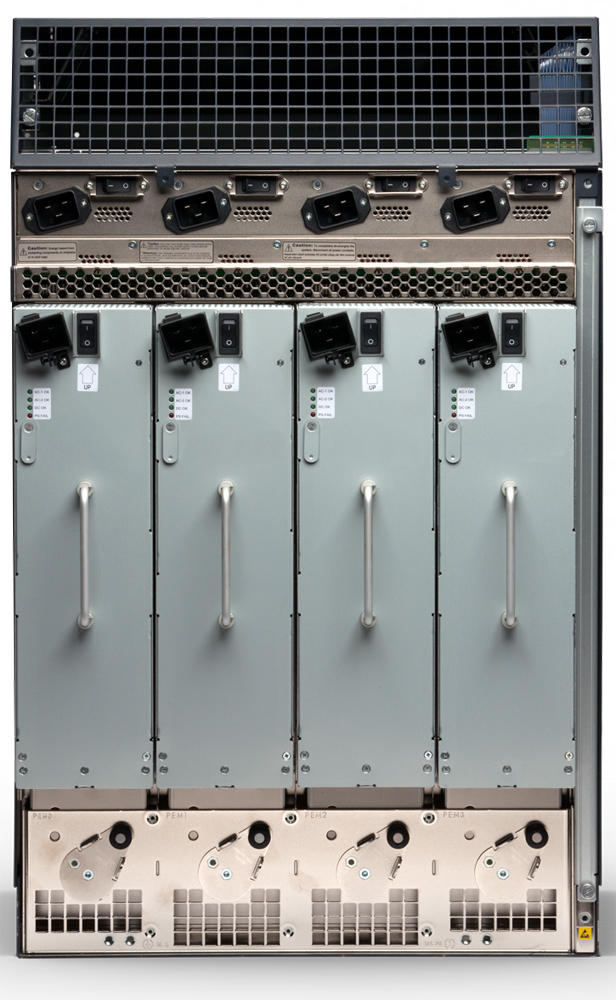

4 power supply bays on each chassis for N+1 or N+N redundancy; field-replaceable fan trays; redundant Routing Engines and switch fabrics; graceful Routing Engine switchover (GRES)

Operating system

Junos OS

Traffic Monitoring

sFlow

QoS queues / port

8

MAC addresses

1,000,000

Jumbo frames

9192 bytes

IPv4 unicast/multicast routes

256,000

IPv6 unicast/multicast routes

256,000

Number of VLANs

32,000

ARP entries

256,000
